How to Use Socket.io with Express

socket.io allows us to make a connection between a client and a server but have that connection persist.

Normally, the client and server would have a simple transaction: the client would get data from the server then close the connection. If the client needs 10 pieces of information they have to make 10 requests. With WebSockets, the client can connect to the server and have that connection stay open. So the client can make 10 requests with just 1 connection.

Socket.IO is composed of two parts:

  • A server that integrates with (or mounts on) the Node.JS HTTP Server
  • A client library that loads on the browser side

Set up Socket.io on Express Server

Install dependencies: The only packages you need are Express and Socket.io

npm install express socket.io

Import packages

const http = require('http');
const express = require('express');
const socketio = require('socket.io');

Create io object

const app = express();
const server = http.createServer(app);
const io = socketio(server);

http.createServer is used by Express under the hood but we need to access it directly

Socket.io Methods on the Server

This is a function that runs every time a client connects to our server. In the callback, we create a socket instance for each one of the clients

We can access the socket.id, a random ID that is automatically assigned to them when they join the server.

// Run when client connects
io.on('connection', socket => {
   console.log('New WS Connection...');
});

socket.on listens for events from the client

The string "sendMessage" is a custom event emitted from the client whenever a new message is sent. socket.on allows us to access that event and any data sent with it (message) on the server.

socket.on("sendMessage", message => {
   console.log(message)
})

io.emit sends an event down to every client connected to the server

In this example, we are taking the message that was sent to the server with "sendMessage" and emitting it to all the connected sockets through an event called "recieveMessage".

socket.on("sendMessage", message => {
   io.emit("recieveMessage", message)
})

In order to send a message to every socket except the socket sending the message, use socket.broadcast.emit

socket.broadcast.emit("recieveMessage", message)

Emit message to a room with socket.to in front of the emit command

socket.on("sendMessage", (message, room) => {
   socket.to(room).emit("receiveMessage", message)
})

To join a room, use the socket.join method. You can only join a room from the server, not the client.

socket.on("joinRoom", room => {
   socket.join(room)
})

Send a callback function to the server.

On the client, pass the callback function as the last parameter.

socket.emit("joinRoom", room, message => {
   displayMessage(message)
})

On the server, use the callback function. Basically, you’re doing this: displayMessage(`Joined ${room}`)

socket.on("joinRoom", (room, cb) => {
   socket.join(room)
   cb(`Joined ${room}`)
})

Disconnect from the server

socket.on('disconnect', () => {
   //...
});

Socket.io on the Client

In this tutorial, we are assuming you are using static HTML pages as the frontend. So no JavaScript frameworks like React or Vue.

If Socket.io is installed in the root directory, you can use the client library in our public files by simply adding this line to your main HTML file

<script src="/socket.io/socket.io.js"></script>

You can create a Socket object with this command:

const socket = io()

If Socket.io is NOT installed in the root directory, you must install the socket.io-client package in your client folder.

npm i socket.io-client

Then, in a JavaScript file you can import io from the library

import { io } from 'socket.io-client'

Then, create a socket on the frontend by calling the io function and passing in the address of the server.

const socket = io('http://localhost:3000')

Also, on the server, make sure you add the following parameters to the require('socket.io') function. This will prevent CORS from blocking the frontend from connecting to the backend. The URL should be the URL that your frontend application is running on.

const io = socketio(server, {
  cors: {
    origin: ['http://localhost:8080']
  }
});

Use socket.on to receive events from the server

// Receive message from server and output it to screen
socket.on('message', (message) => {
  outputMessage(message);
});

// Example 2
socket.on('roomUsers', ({ room, users }) => {
  outputRoomName(room);
  outputUsers(users);
});

Use socket.emit to send events to the server

// Tell server you want to join a chatroom
socket.emit('joinRoom', { username, room });

Logging in Node with Winston

What is Winston?

Winston is a simple and universal logging library.

Why use a logging library?

When developing an application, sometimes we need to get information about how the application is running. We can use functions like console.log, console.error, console.warn to accomplish this. A logging library, such as Winston, allows us to output similar types of data except it can send this data (log data) to locations other than just the console. For example, an external file.

The basic idea of logging

Basically, you have a logger that writes to an arbitrary amount of transports. A transport is essentially a storage device for your logs. Some common transports include:

  • stdout (console)
  • file
  • HTTP
  • Datadog (log aggregator)

Log levels

Log levels allow us to categorize the entries in a log file by urgency. The higher up it is, the more severe it is. As you can see, fatal is the most severe.

These are npm log levels:

{
   fatal: 0,
   error: 0,
   info: 0,
   http: 0,
   verbose: 0,
   debug: 0,
}

Setting up a simple logger in Winston

The recommended way to use winston is to create your own logger. The simplest way to do this is using winston.createLogger.

Install Winston in project

npm install winston

In a new file, create a logger with winston.createLogger

const winston = require('winston');

const logger = winston.createLogger({

});

module.exports = logger;

Add custom properties to logger

const winston = require('winston');

const logger = winston.createLogger({
   format: winston.format.simple(),
   transports: [new winston.transports.Console()],
});

module.exports = logger;

The format property controls how the logs are displayed visually.

transports is an array of the places (transports) to send the log data to. In the above example, our only transport is the console.

Use the logger

const logger = require('./logger')   // access the file you created earlier

logger.info('text info');
logger.warn('text warn');
logger.error('text error');
logger.debug('text debug');

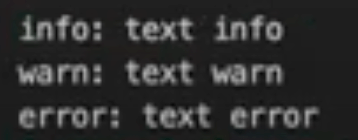

The output should look something like this:

Why is the debug log not showing up? The default log level for a Winston logger is info. This means that Winston will only log the info level and all levels ABOVE it (warn, error, etc.)

Creating custom log format in Winston

Destructure Winston import

This is just for our own ease of use. No change to the logic.

const { createLogger, format, transports } = require('winston');
const { timestamp, combine, printf } = format;

const logger = createLogger({
  format: format.simple(),
  transports: [new transports.Console()]
});

Create custom format

const myFormat = printf(({ level, message, timestamp }) => {
  return `${timestamp} ${level}: ${message}`;
});

Add the format to your logger

const logger = createLogger({
  format: combine(timestamp(), myFormat),
  transports: [new transports.Console()]
});

Final code

const { createLogger, format, transports } = require('winston');

const myFormat = printf(({ level, message, timestamp }) => {
  return `${timestamp} ${level}: ${message}`;
});

const logger = createLogger({
  format: combine(timestamp(), myFormat),
  transports: [new transports.Console()]
});

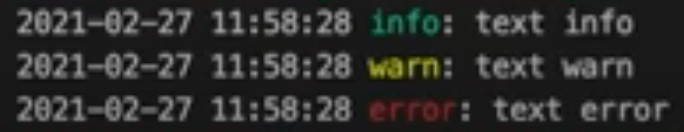

Here is another custom log format

const logger = createLogger({
  format: combine(
       format.colorize(),
       timestamp({ format: 'YYYY-MM-DD HH:mm:ss' }),
       myFormat
  ),
  transports: [new transports.Console()]
});

How to Execute a Python Script in a Node.js Project

This tutorial assumes that you’ve already set up a basic Node.js project with Express. I have other tutorials explaining how to do this if you don’t know how.

First, create a new python file in your Node project directory. I will call mine hello.py. In hello.py, I will write a simple Python print statement to test.

print("Hello world")

In my main JavaScript file, I’m going to add the bolded line:

const express = require('express');
const { spawn } = require('child_process');

const app = express();

app.get('/', (req, res) => {
   console.log('Hello world');
});

app.listen(4000, console.log('Server started on port 4000'));

In the code above, we set up a basic Express app with one get router. Pay attention to the bolded line:

const { spawn } = require('child_process');

Next, we will use the new spawn class that we imported with this line from the child_process library.

In the get router, add the following lines:

app.get('/', (req, res) => {
   const childPython = spawn('python', ['hello.py']);

   childPython.stdout.on('data', (data) => {
      console.log(`stdout: ${data}`)
   });

   childPython.stderr.on('data', (data) => {
      console.error(`stderr: ${data}`);
   });

   childPython.on('close', (code) => {
      console.log(`child process exited with code ${code}`);
   });
});

In the above code, spawn a new child_process with parameters ‘python‘ and ‘script1.py‘. We set this to an object called childPython:

const childPython = spawn('python', ['hello.py']);

The first parameter is the program we want to call and the second is an array of strings that will use the python program. It is the same command if you wanted to write it in a shell to run the script1.py: python 'script1.py'

The first event is:

childPython.stdout.on('data', (data) => {
      console.log(`stdout: ${data}`)
 });

The data argument that we are receiving from the callback function will be the output of the Python code we wrote in hello.py. We could also get access to the outputs this way. In the code below, we have to either return or console.log the dataToSend.

python.stdout.on('data', function (data) {
   dataToSend = data.toString();
});

If this event fails, the error event will be called:

childPython.stderr.on('data', (data) => {
    console.error(`stderr: ${data}`);
});

This is the final event. The close event is emitted (run) when the stdio streams of a child process have been closed:

childPython.on('close', (code) => {
   //res.send(dataToSend)
   console.log(`child process exited with code ${code}`);
});

Here’s another example of a very basic program. This program will generate a random number between 0 and 9 (inclusive):

The contents of num.py file:

import random

def generate():
    return random.randint(0, 9)

print(generate())

The contents of index.js file:

const express = require('express');
const { spawn } = require('child_process');

const childPython = spawn('python', ['hello.py']);

childPython.stdout.on('data', (data) => {
    console.log(`The new random number is: ${data}`)
});

childPython.stderr.on('data', (data) => {
    console.error(`There was an error: ${data}`);
});

childPython.on('close', (code) => {
    console.log(`child process exited with code ${code}`);
});

const app = express();

const PORT = process.env.PORT || 4000;
app.listen(PORT, console.log(`Server started on port ${PORT}`));

The output should look something like this:

How to Build a Node.js Project for Beginners

First, make sure you have Node installed. I’m not going to show how to do that in those tutorial. For developers that already know how to use Node, this tutorial can serve as a guide to help jog your memory whenever you forget all the steps to building a new Node.js project.

Once you have Node installed, you can write these commands in Terminal to get started:

mkdir folder-name    (create a new folder)
npm init             (initialize Node Package Manager)
touch index.js       (create server file)

For the npm init step, it will make you click through a bunch of prompts/set-up questions to set up NPM in your folder.

For your server file, it doesn’t matter what it’s name is as long as you make sure it has the same name as the one you defined in the NPM initialization questions.

In Terminal within your project directory, add these NPM packages to your project using the command npm i or npm install

npm i express         (install express - a Node web framework)
npm i -D nodemon      (install nodemon as a dev dependency)

Open up your server file (index.js) in a code editor (I prefer Visual Studio Code) and type this Node code:

const express = require('express');

const app = express();

const PORT = process.env.PORT || 4000;

app.listen(PORT, console.log(`Server started on port ${PORT}`));

The Express framework is the most popular Node backend web framework by far and it will make working with Node for the web 100x easier.

To run this and make sure it works, type this command in your Terminal (make sure your in your project directory):

nodemon index.js

The Terminal should output the string “Server started on port 4000” (or port 5000, 6000, etc. based on what you put in your code).

This means that the project is running on the specified port on your localhost.

Sequelize with PostgreSQL with Node

Import the Sequelize module into your Node project

npm i sequelize

Add the specific database driver to coincides with the SQL DBMS that you are using:

npm i --save pg pg-hstore

Connect to the database in your Node application

Option 1: Passing a connection URI

const sequelize = new Sequelize('postgres://user:pass@example.com:5432/dbname')

module.exports = sequelize;

Option 2: Passing parameters separately (other dialects)

const sequelize = new Sequelize('database', 'username', 'password', {
   host: 'localhost',
   dialect: 'postgres'
});

module.exports = sequelize;

Test the connection

try {
   await sequelize.authenticate();
   console.log('Connection has been established successfully.');
} catch (error) {
   console.error('Unable to connect to the database:', error);
}

Create a new model

The db variable is imported from the Sequelize connection above (Opt 1 or 2) which we are assuming is in a separate file.

const Sequelize = require('sequelize');
const db = require('../config/database');

const Person = db.define('gig', {
   name: {
      type: Sequelize.STRING
   },
   age: {
      type: Sequelize.INTEGER
   },
   description: {
      type: Sequelize.STRING
   }
});

module.exports = Person;

Start making Sequelize queries in server routes

The beauty of Sequelize is that it allows you to use object-oriented syntax to make queries to relational/SQL databases.

app.get('/', (req, res) =>
   Person.findAll()
      .then(people => console.log(people))
      .catch(err => console.log(err)));

Upload Images to AWS S3 from Node Server w/ Multer

  1. Create a bucket
    1. (Sign in to console) Sign in to the AWS Management Console and open the Amazon S3 console at https://console.aws.amazon.com/s3/.

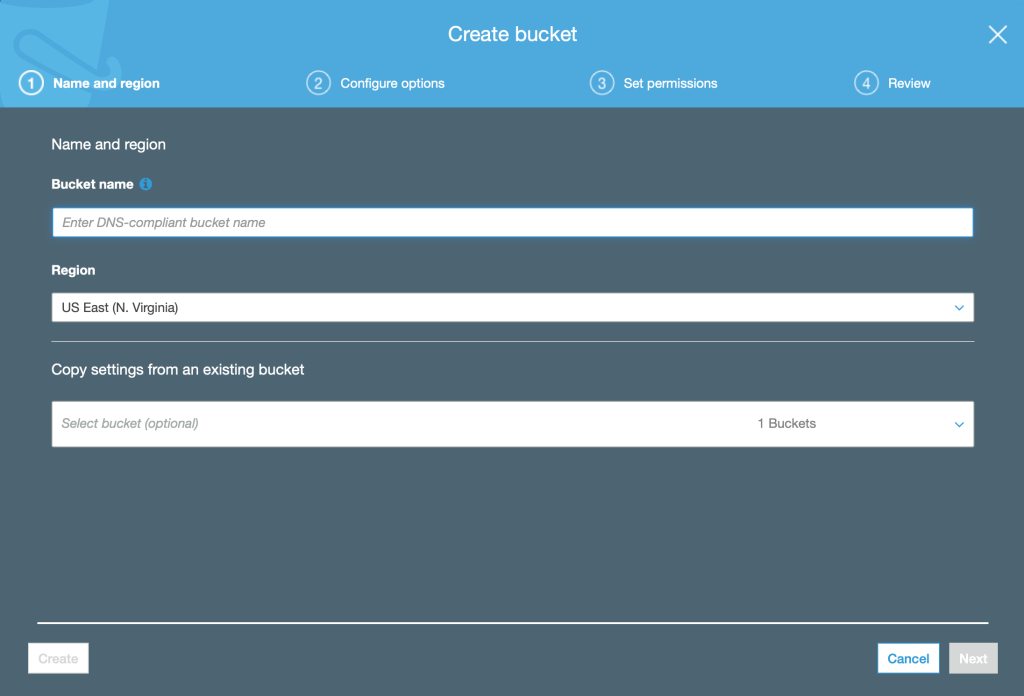

    2. Choose Create Bucket
    3. In Bucket name,  enter a DNS-compliant name for your bucket.
    4. In Region, choose the AWS Region where you want the bucket to reside.
    5. In Bucket settings for Block Public Access, keep the values set to the defaults. They will be private for now. We will change them to public later.
    6. Choose Create bucket.

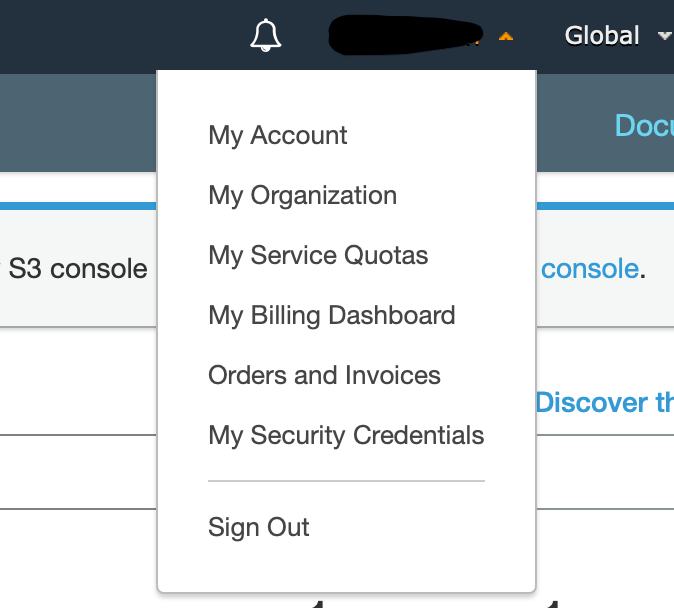

2. Get security credentials

3. Install dependencies to Node project

npm i --save aws-sdk multer multer-s3

4. Set up the file upload middleware with multer and AWS-SDK

const aws = require('aws-sdk');
const multer = require('multer');
const multerS3 = require('multer-s3');

const config = require('../config');

aws.config.update({
   secretAccessKey: config.get('AWS_SECRET_ACCESS'),
   accessKeyId: config.get('AWS_ACCESS_KEY'),
   region: 'us-east-1'
});

const s3 = new aws.S3();

const upload = multer({
   storage: multerS3({
      s3,
      bucket: 'bucket-name',
      acl: 'public-read',
      key: function (req, file, cb) {
         cb(null, Date.now().toString())
      }
   })
}).single('photo');

module.exports = upload;

In the upload middleware, we define a key value. This key serves essentially as the image’s name in AWS, differentiating images in the list in the AWS Console. We are setting the key to the date at which the image is saved.

5. Set up route to handle image requests

router.post('/image-upload', function(req, res) {
   upload(req, res, (err) => {
      if (err) {
         return res.status(422).send({errors: [{title: 'File Upload Error', detail: err.message}] });
      }

      return res.json({'imageUrl': req.file.location});
   });
});

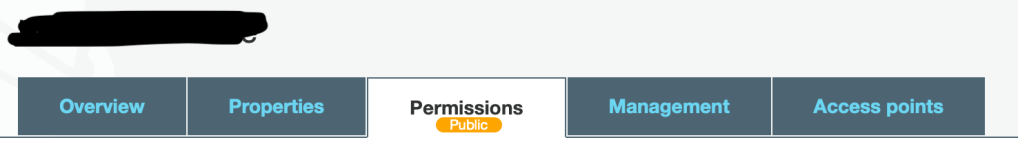

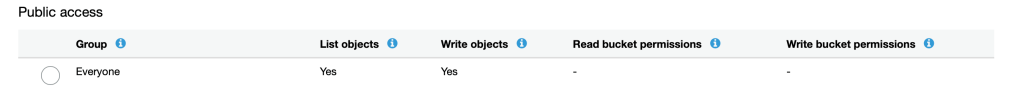

6. Set permissions to public

7. Send request in Postman to test it

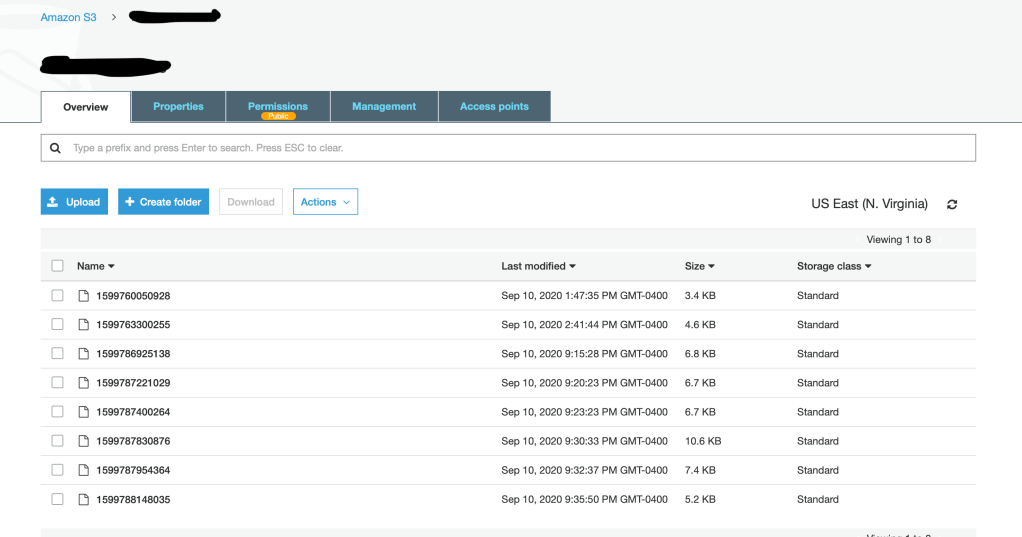

8. Check the AWS S3 console to see if a new entry is there

The Date string that we set as the key value is in the Name field.

Uploading Images in Node with Multer

Multer is one of the most popular libraries for uploading files to a Node.js server. Multer is a Node.js middleware for handling multipart/form-data, which is primarily used for uploading files.

Install Multer package in your project

npm i multer

Create a form in your HTML file that will post to your server. Notice the enctype is set to multipart/form-data. Also, make sure to give your inputs names. That is how Multer finds them.

<form action="/" method="POST" enctype="multipart/form-data">
   <input type="text" name="name">
   <input type="file" name="image">
   <button type="submit">Submit</button>
</form>

Below is a very basic application of Multer. When our form makes a post request to the root, the Multer middleware (upload.single('image')) will give us access to the inputs in the request. The middleware takes in the name of the file input from your form. In our case, we called the input image. req.file holds the file uploaded to the form. req.body holds the text inputs.

When we defined our upload middleware, we set the destination in which we want to store our file uploads from Multer. In this case, files from our form will be stored in the uploads folder. If the folder doesn’t exist, it will be created automatically.

var express = require('express')
var multer  = require('multer')
var upload = multer({ dest: 'uploads/' })

var app = express()

app.post('/', upload.single('image'), function (req, res, next) {
  console.log(req.file, req.body);
})

Multer also allows us to customize the way that we handle file uploads.

The disk storage engine gives you full control on storing files to disk. There are two options available, destination and filename. They are both functions that determine where the file should be stored.

const storage = multer.diskStorage({
    destination: function (req, file, cb) {
       cb(null, './public/uploads');
    },
    filename: function (req, file, cb) {
        cb(null, file.fieldname + '-' + Date.now() + path.extname(file.originalname));
    }
});

You append this storage property to your upload middleware

const upload = multer({
    storage: storage,
});

You can also create a filter function to define which types of files you want to accept and which types of files you don’t. For example, you can set your filter to only accept .png, .jpeg., and .jpg file types.

function checkFileType(file, cb) {
    // Allowed ext
    const filetypes = /jpeg|jpg|png/;
    // Check ext
    const extname = filetypes.test(path.extname(file.originalname).toLowerCase());
    // Check mime
    const mimetype = filetypes.test(file.mimetype);

    if (mimetype && extname) {
        return cb(null, true);
    } else {
        cb('Error: Images Only');
    }
}

Set this to the fileFilter property of the upload object:

const upload = multer({
    storage: storage,
    fileFilter: function (req, file, cb) {
        checkFileType(file, cb);
    }
}));

Insert A Record Into MySQL Database from Server POST Request (Node + MySQL)

There are 2 ways to insert data from the req.body of a route:

Method #1

router.post('/', (req, res) => {
    const userInfo = req.body;

    const sql = "INSERT INTO users SET ?";

    mysqlConnection.query(sql, userInfo, (err, rows, fields) => {
        if (!err) {
            res.send(rows);
        } else {
            console.log(err.message);
            res.send(err);
        }
    })
});

Method #2

router.post('/', (req, res) => {
    const { name, username } = req.body;

    const sql = "INSERT INTO users (name, username) VALUES ('${name}', '${username}')";

    mysqlConnection.query(sql, (err, rows, fields) => {
        if (!err) {
            res.send(rows);
        } else {
            console.log(err.message);
            res.send(err);
        }
    })
});

Node.js MySQL Tutorial

This tutorial assumes you have Node.js, MySQL, and MySQL Workbench installed

  1. Create a new Node application

Create the package.json and install the necessary dependencies

cd project-folder
npm init
npm i express express-handlebars mysql

2. Create a new MySQL Database

Create a new Schema. I will call mine Practice

3. Set up your server file

Quickly set up your server file and initiate your MySQL Connection in order to make sure the connection is running successfully before we go any further.

const express = require("express");
const mysql = require("mysql");

const app = express();

app.use(express.urlencoded({ extended: false }));
app.use(express.json({ extended: true }));

const mysqlConnection = mysql.createConnection({
    host: "localhost",
    user: "root",
    password: "password",
    database: "Practice",
    multipleStatements: true
})

mysqlConnection.connect((err) => {
    if (!err) {
        console.log("Connection Successful");
    } else {
        console.log("Connection Failed");
        console.log(err.message);
    }
})

app.listen(3000);

Run your Node app

node index.js OR nodemon index.js

If your Terminal logs “Connection Successful”, move to Step 4

4. Move MySQL Connection to separate file

This is not required; it’s simply for organization’s sake

At the same level as the server file, make a new file. I’ll call mine connection.js

This will be the contents of the file:

const mysql = require("mysql");

const mysqlConnection = mysql.createConnection({
   host: "localhost",
   user: "root",
   password: "josh-mysql",
   database: "Practice",
   multipleStatements: true
});

mysqlConnection.connect((err) => {
   if (!err) {
      console.log("Connection Successful");
   } else {
      console.log(err.message);
   }
});

module.exports = mysqlConnection;

In the server file, import the MySQL connection from the connection.js file:

const mysqlConnection = require("./connection");

5. Create a table in the database

I’m going to open up my Practice Schema and find the Tables. Then, I’m going to right-click on Tables and create a new Table by clicking “Create Table.” Give your table a name and whatever properties you would like. Then, press Apply.

My projects table have properties of id and name

6. Create a route and query the database

In my server file, I’m going to handle GET requests to the root route. When a user requests the root route, I will query the MySQL database for all of the items in our projects table and send back the items in the response.

app.get("/", function(req, res){
   mysqlConnection.query("SELECT * from projects", (err, rows, fields) => {
      if (!err) {
          res.send(rows);
      } else {
         console.log(err);
      }
   })
});

Let’s test out our route. Run your server with node index.js, open up Postman and send a GET request to the root route.

Since we haven’t created any records into our projects table, this request should return an empty array.

That’s it! You’ve set up a basic Node server with a MySQL database.

Errors Connecting to MySQL in Node

ER_NOT_SUPPORTED_AUTH_MODE: Client does not support authentication protocol requested by server; consider upgrading MySQL client

In MySQL Workbench, open a blank Query page and execute these commands (Query > Execute (All or Selection)):

ALTER USER 'root'@'localhost' IDENTIFIED WITH mysql_native_password BY 'password';
flush privileges;

This is what it will look like in Workbench:

ER_ACCESS_DENIED_ERROR: Access denied for user ‘root’@’localhost’ (using password: YES)

In the part of your Node application where you define the connection to the MySQL database, set password to an empty string:

const connection = mysql.createConnection({
    host: 'localhost',
    user: 'root',
    password: ''
});

After you re-run your server, the error will go away, but you may be left with a new error– the error below:

ER_MUST_CHANGE_PASSWORD_LOGIN: Your password has expired. To log in you must change it using a client that supports expired passwords.

Execute the following query in MYSQL Workbench (change new-password to your own new password):

ALTER USER `root`@`localhost` IDENTIFIED BY 'new-password',
       `root`@`localhost` PASSWORD EXPIRE NEVER;
flush privileges;
